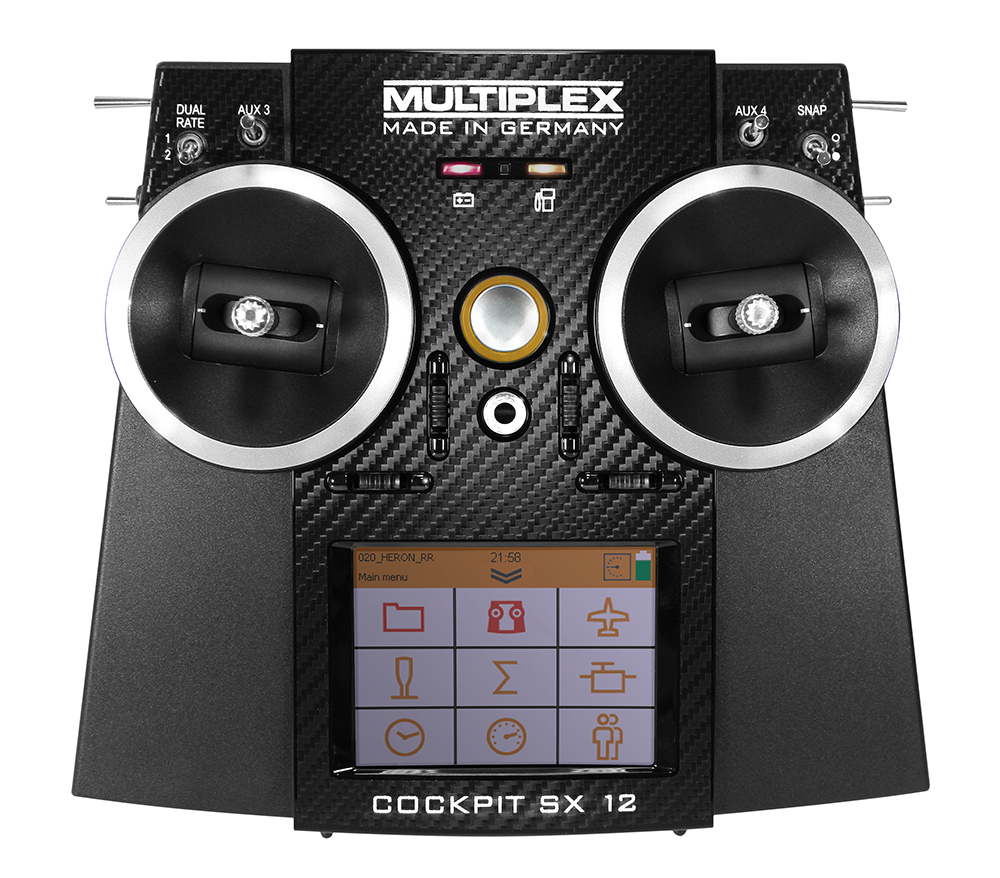

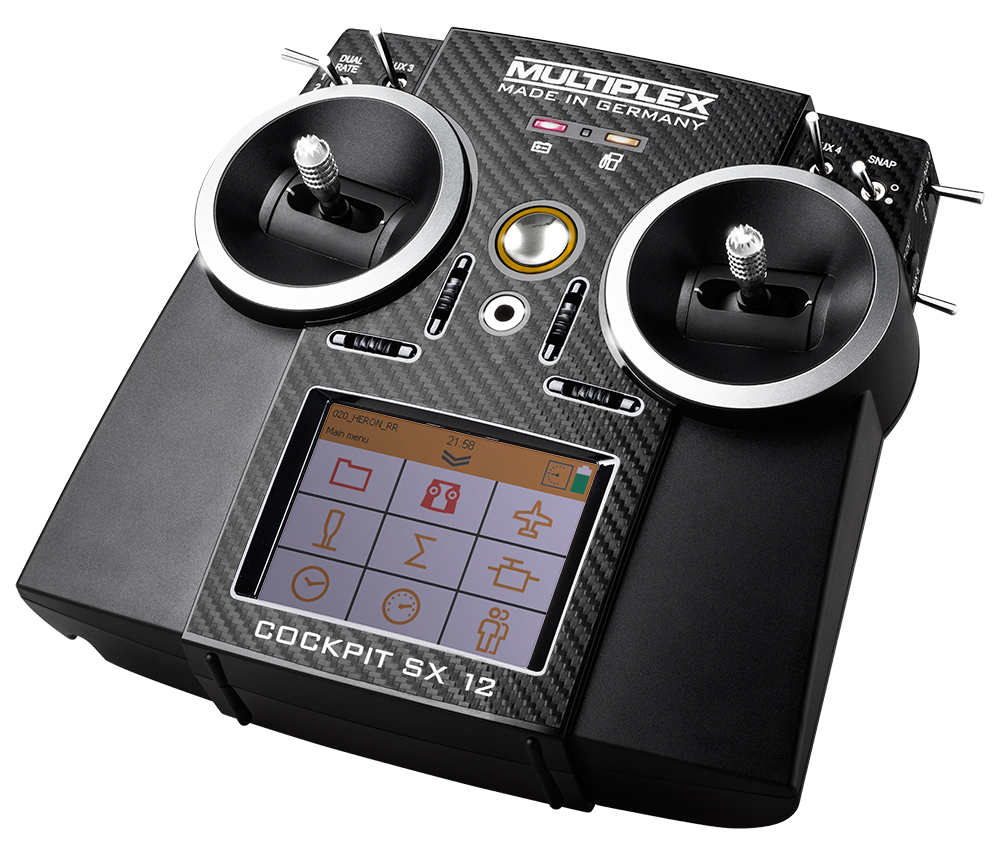

Multiplex COCKPIT SX 12 M-LINK Transmitter only

The MULTIPLEX COCKPIT SX 12 sets new standards in the in the field of 12-channel hand-held transmitters.
Touch, control and fly – operation like a smartphone!

The COCKPIT SX 12 is very easy to program using its app icons. The new SAFE-LINK software in conjunction with numerous other new software features further enhances the transmitter. The model assistant guides you intuitively through a sophisticated touch concept with clear screens and many self-explanatory graphics. Easy-to-read TFT color touch display (even in sunlight) 3.5″, 320×240 pixels, with automatic day/night switching. Transmitter operating time up to 24 hours possible.

Unique in this class is the intuitive control of functions via motion sensors (position or rotation rate sensors).

rotation rate sensors). For example, for camera movements, triggering voice output, etc.

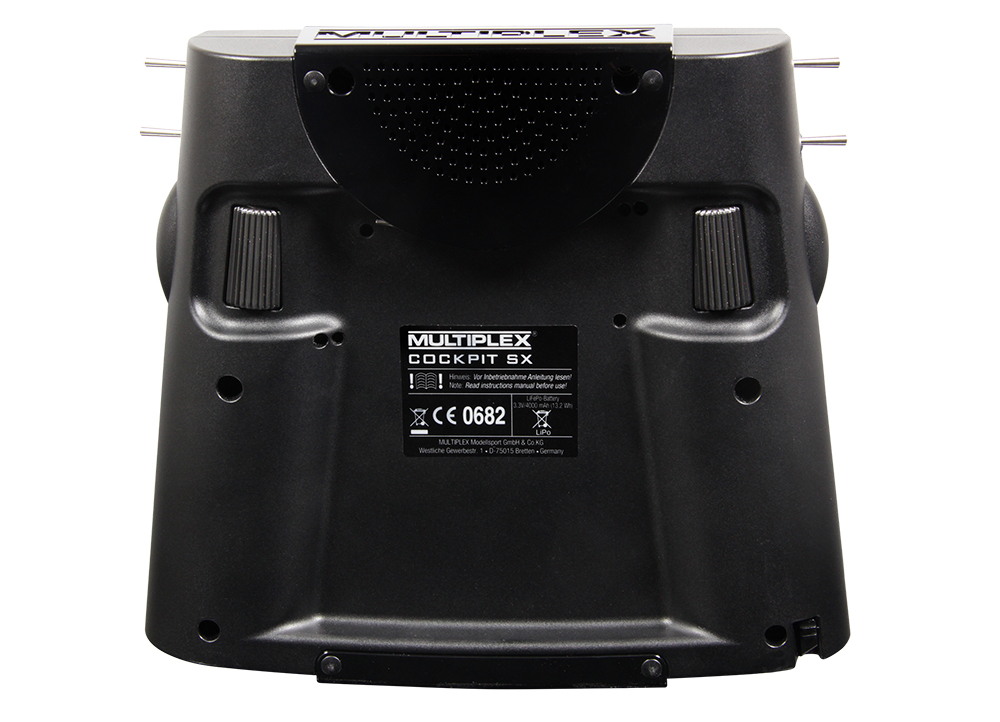

The COCKPIT SX 12 has an excellent ergonomic design. The transmitter has a very comfortable housing size and is very easy to hold. All switches/encoders can be reached comfortably during operation without having to take your thumb off the stick. The encoder assignment can be selected individually.

The ideal remote control for RC model planes, RC helicopters and RC copters. Can also be used for RC cars, model ships and much more.

The COCKPIT SX 12 is 100% developed and built in Germany. Quality Made in Germany!

TFT color touch display

Clear, transflective color display 3.5″, 320×240 pixels, touchscreen with meaningful symbols and large, easy-to-read digits/letters. Can be read in sunlight without backlighting: ideal for model sports. Extremely energy-saving in outdoor operation thanks to automatic day/night switching. Transmitter operating time up to 24 hours possible. Display lock can be activated.

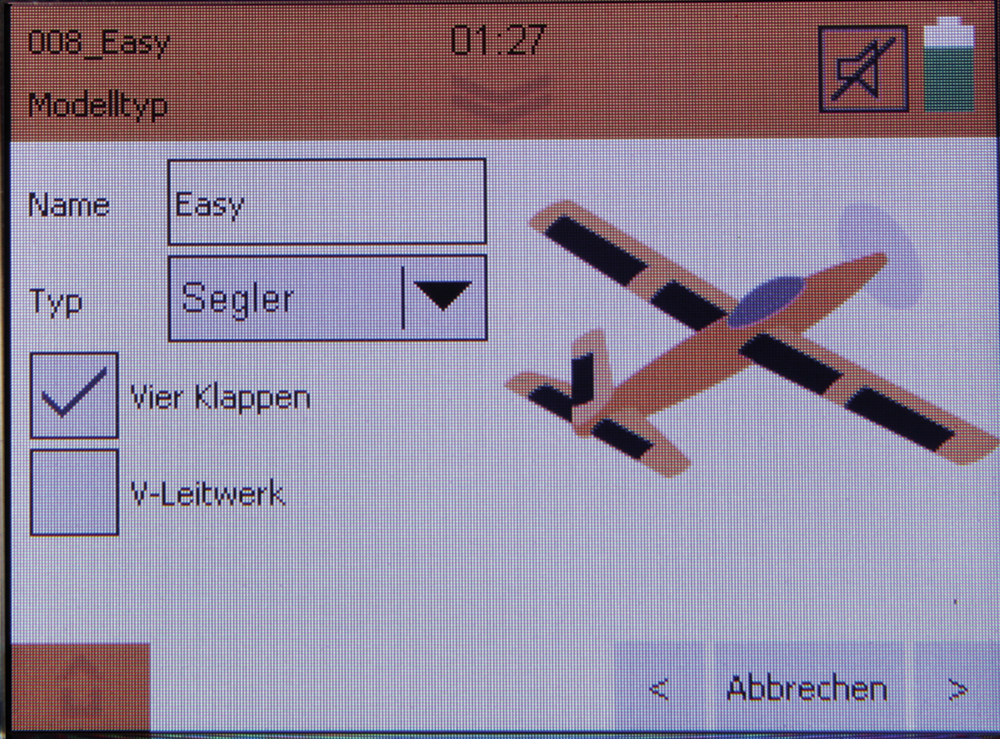

Simple and extensive programming options via new model assistant

Intuitive operation thanks to a sophisticated touch concept with clear screens and many self-explanatory graphics. A convenient model assistant with a wide range of options for adjusting values via the touchscreen. Simple adjustment via slider, direct value input with alphanumeric keypad, +/- and buttons for fine adjustment ensure the simplest programming of your models.
Super convenient model memory management

The COCKPIT SX 12 is equipped with 200 internal model memory locations, the model memories are stored on the internal SD card in .xml format.
Convenient model memory management on the PC via USB mass storage is therefore easily possible.
Outstanding voice output

With over 450 words, numbers and phrases, it is one of the most advanced systems of its kind ever built into a handheld transmitter.

Using this system allows COCKPIT SX 12 pilots to perceive critical telemetry data and transmitter functions without taking their eyes off the aircraft. The COCKPIT SX 12 tells them the specific sensor and timer values as required. If an alarm is triggered, you don’t have to look at the display to see what’s going on, the COCKPIT SX 12 will tell you.
Return channel/telemetry

When using a telemetry-capable receiver, the current voltage of the receiver power supply is shown on the transmitter display. If the voltage falls below an adjustable minimum voltage, an acoustic signal warns of an empty receiver battery. Without a sensor, the connection quality (LQI) can also be shown on the transmitter display in % values. An additional safety plus!

You can also have up to 8 telemetry data from the model (depending on the sensors connected to the receiver, e.g. voltage, current, temperature, etc.) shown on the display (application examples: Motor temperature, drive battery voltage, drive current consumption). The telemetry data is stored in the model in conjunction with the optional MULTIPLEX FlightRecorder (# 8 5420). The displays and the announcements of the sensor values are freely configurable, dynamic adaptation of the displays.

Wireless teacher/student operation

The COCKPIT SX 12 M-LINK can be both a teacher and student transmitter as standard. All L/S-compatible M-LINK transmitters can be used as student or teacher transmitters. The optional COPILOT module (# 4 5184) is required for teacher operation. The COCKPIT SX 12 works with selective L/S operation. This allows complete transfer or, depending on the learning progress of the student, the transfer of individual control functions to the student. The teacher can only take over the model again by touching the sticks.

Dual rate and expo can be set separately for each phase for 3 axes (aileron, elevator, rudder)

4 timers:

– Timer 1: mm:ss start/stop switch selectable, alarm function, voice output, vibration

– Timer 2: mm:ss start switch selectable, alarm function, voice output, vibration

– Timer 3: hh:mm transmitter operating time counter

– Timer 4: hh:mm Time
Features: COCKPIT SX 12

– 4 proportional encoders (stick functions)

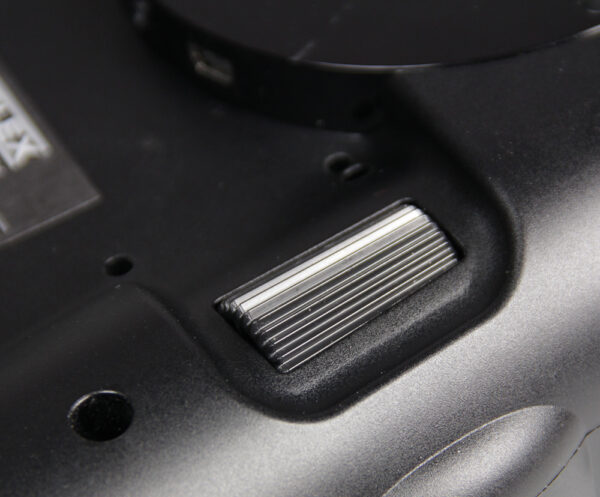

– 2 proportional encoders (rollers)

– 8 switches (4X input / output / input) + (4x input / output)

– 2 push buttons

– 2 display sliders (encoders that are operated with the stylus on the display)

– 6 encoders by position sensor and rotation rate sensor

– LiFe battery 3.3V/4000mAh

– SD card
Technical features:

– Future-oriented 12-channel remote control – 12 fully proportional control channels

– 32 bit processor / 4096 steps

– 2.4 GHz M-LINK transmission secure ultra-fast, digital signal transmission with real-time telemetry

– Analog and digital servo mode

– IOAT antenna – integrated radiation-optimized antenna technology with extremely long range

– 3.5″ large, innovative TFT color touch display with telemetry display and DAY/NIGHT switching, daylight-ONLY

– 4 compartment ball bearing mounted stick units (from the PROFI TX)

– Fully equipped with all necessary controls and switches

– Voice output (D,E,F) via loudspeaker or earphone socket

– USB socket (for charging the transmitter battery, PC interface for firmware updates, data management)

– Modern, ergonomically optimized housing design

– Low weight

– 2.4 GHz transmission technology M-LINK with SAFE-LINK integrated

– µSD card for model storage

– Long operating time up to 24 hours
Software features:

– “Smartphone-like” operation thanks to clear and concise menu structure

– Model wizard guides you through the programming process

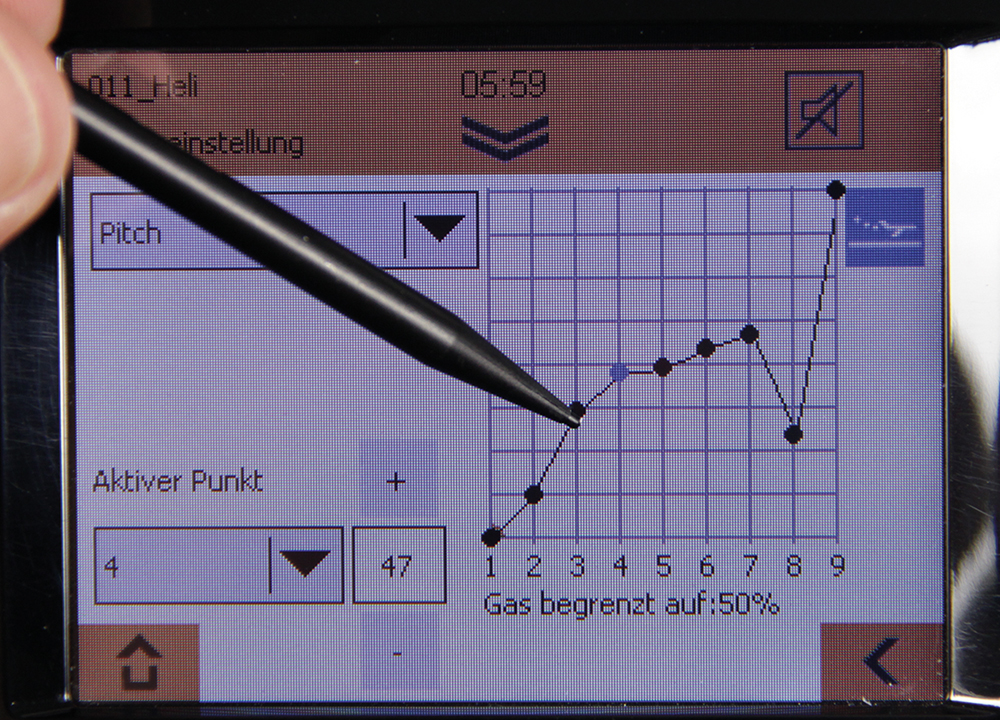

– Slide function – e.g. PITCH CURVES can be set by touching and dragging

– Predefined templates for almost all common surfaces and helicopter models

Areas of application include

GLIDER 2 FLAPS

SEGLER 4 flaps + jamming flaps

SEGLER 6 flaps

V-LEITWERK

ENGINE AIRCRAFT

ARTIFICIAL AIRCRAFT

Jets (DELTA) with 2 and 4 flaps

NURFLÜGLER with 2 and 4 flaps

HELI 120 degrees

HELI 90 degrees

HELI Flybarless

MULTICOPTER

– New SAFE-LINK function:

Range-optimized

Added safety

SAFE-LINK model memory selection protection

Functional model building: up to three models can be switched on the transmitter during operation

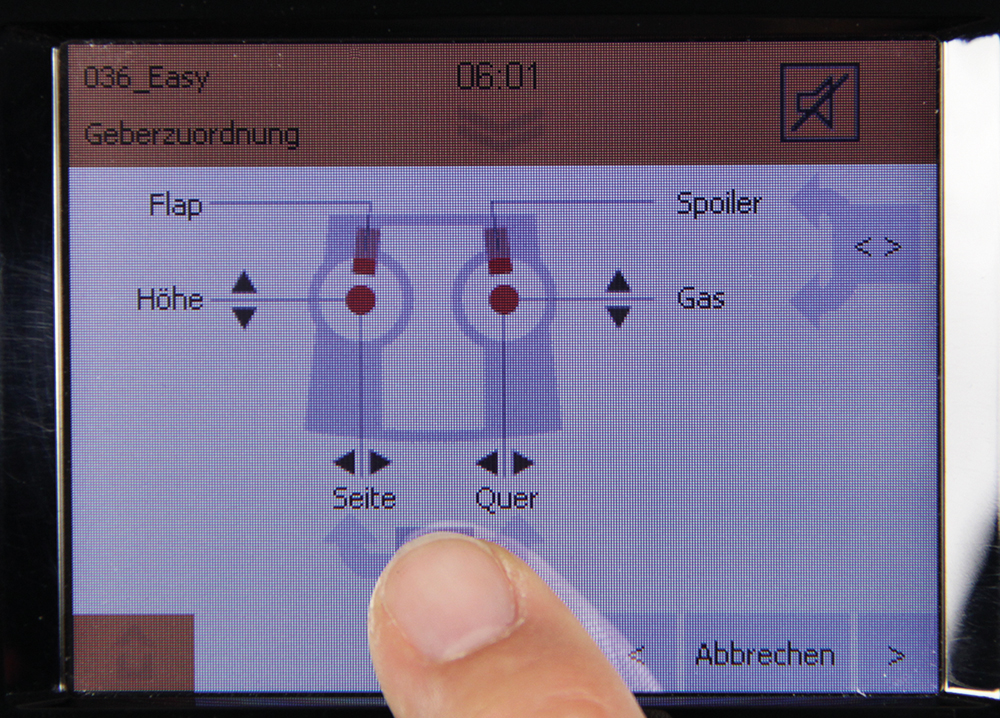

– New GEBERZURZORDUNG individually selectable

– New roller and slider indicators in the display with acoustic support

– New display lock

– Safety: gas check, transmitter battery monitor

– Intelligent voice output D / E / F

– Announcement of telemetry data, warnings, alarms and vario signal via loudspeaker or headphones

– Real-time data transmission

– Optional sensors (vario, GPS, capacity, temperature, voltage, current, speed and much more)

– Vibration alarm and “warning” LEDs for critical alarms

– Digital trim, can be switched off for specific flight phases for heli-flybarless systems and MULTICOPTERs

– 3 timers with voice output plus 1 time-of-day timer

Freely adjustable transmitter mode (aileron, elevator, rudder, throttle, spoiler)

(1x total time timer, 1x motor running time, 1x transmitter operating time)

– Numerous servo settings (travel, limit, reverse, center position) using slide technology.

– Dual rate and expo, separately adjustable for each flight phase

– 3 flight phases (wing)

– 4 flight phases (heli)

– Heli GAS and pitch curves (9 points) can be set separately for each flight phase

– Aileron differentiation, separately adjustable for each flight phase

– Snapflap

– Butterfly function

– FREE SERVO ASSIGNMENT

– Wireless instructor/student operation possible with optional COPILOT

– Multifunctional USB socket (transmitter battery charging, PC interface for firmware updates, data management)

– µSD card for model storage – 200 model memories

– Model copy function

Content:
1x COCKPIT SX 12 M-Link transmitter
1x USB charging cable
1x manual

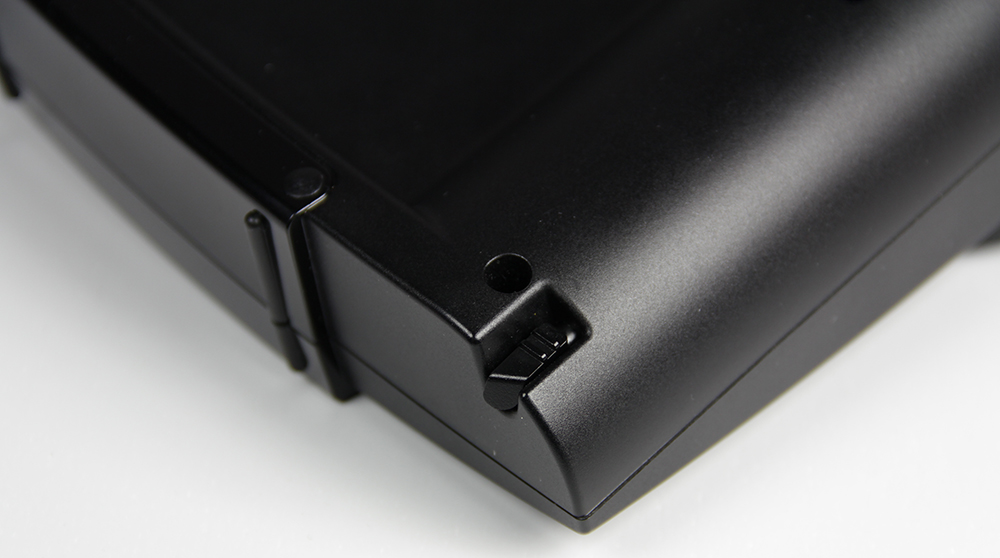

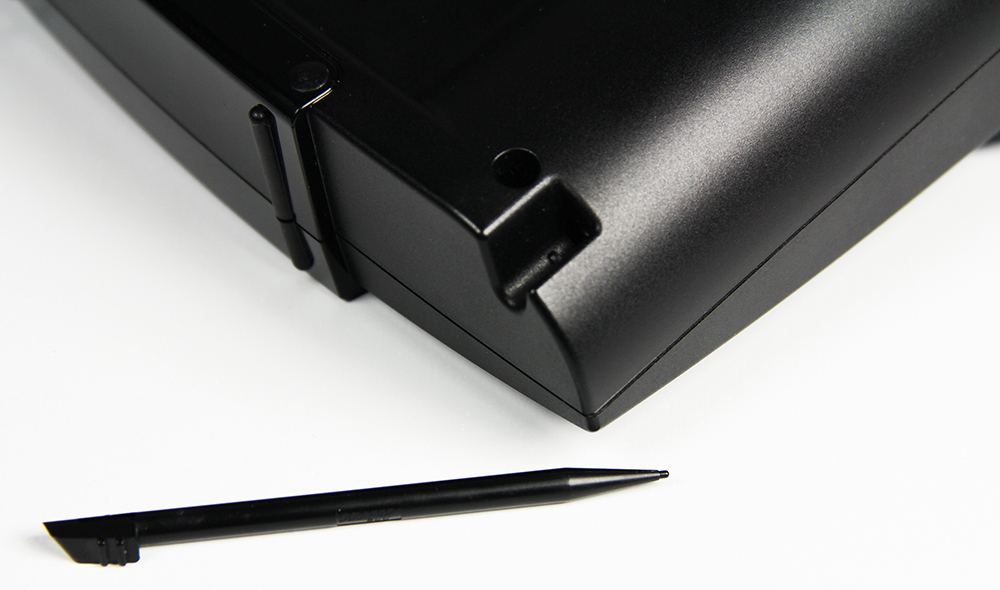

1x stylus
1x plug lock
1x Torx T6 key
1 pair of short aluminum stick handles
+ MULTIGYRO CSX extension module (3 position sensors and gyro sensors which can be used either as switches for telemetry,
and as a control element for controlling servos.
