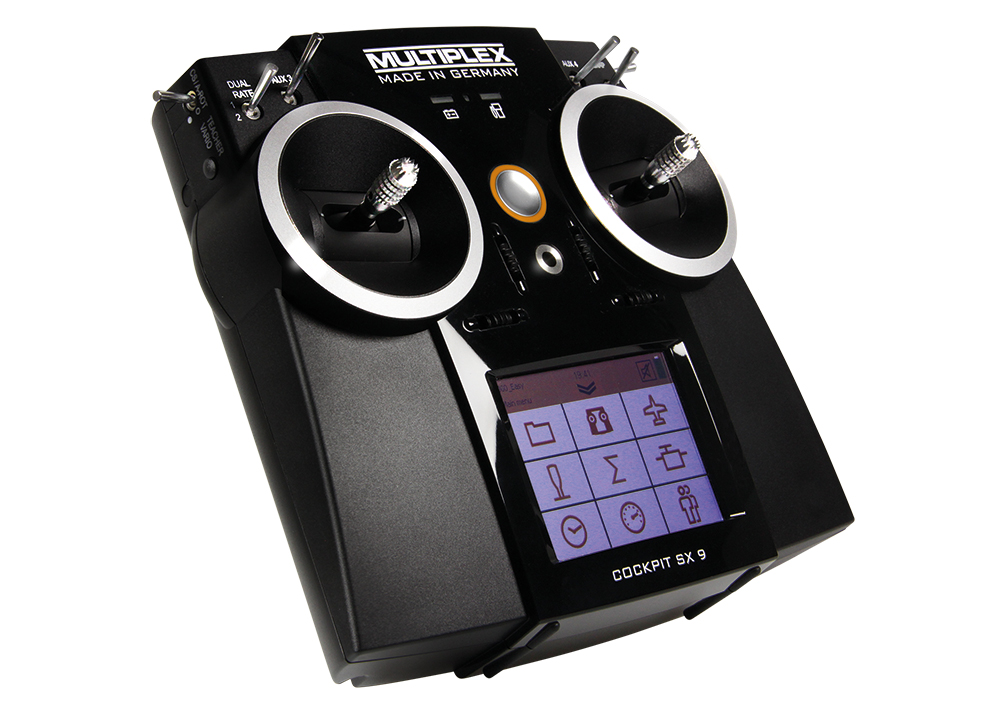

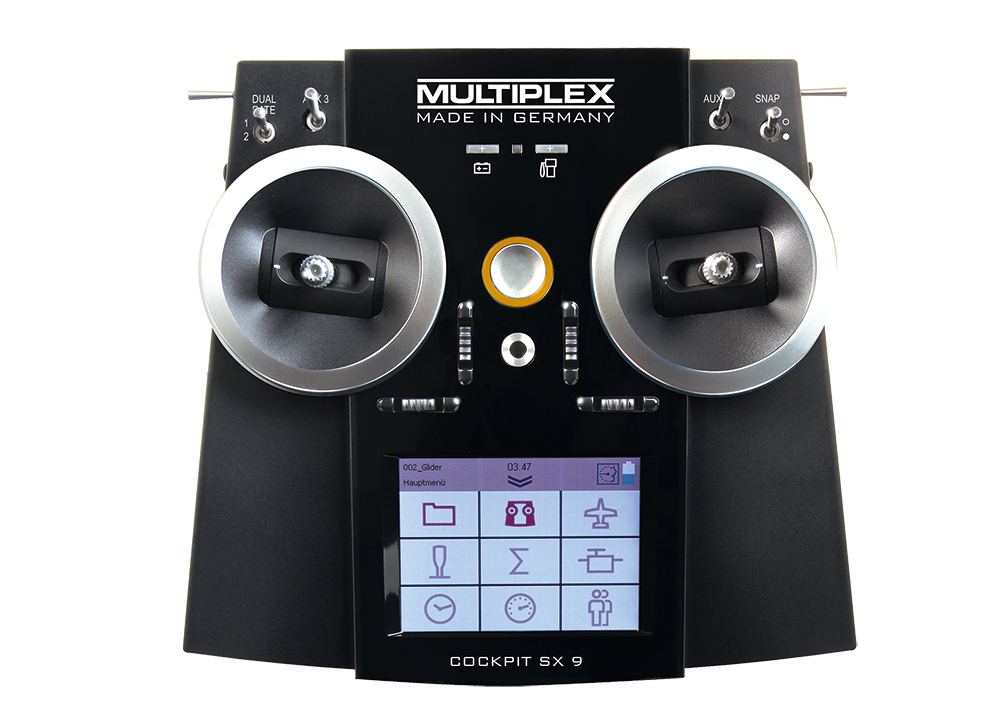

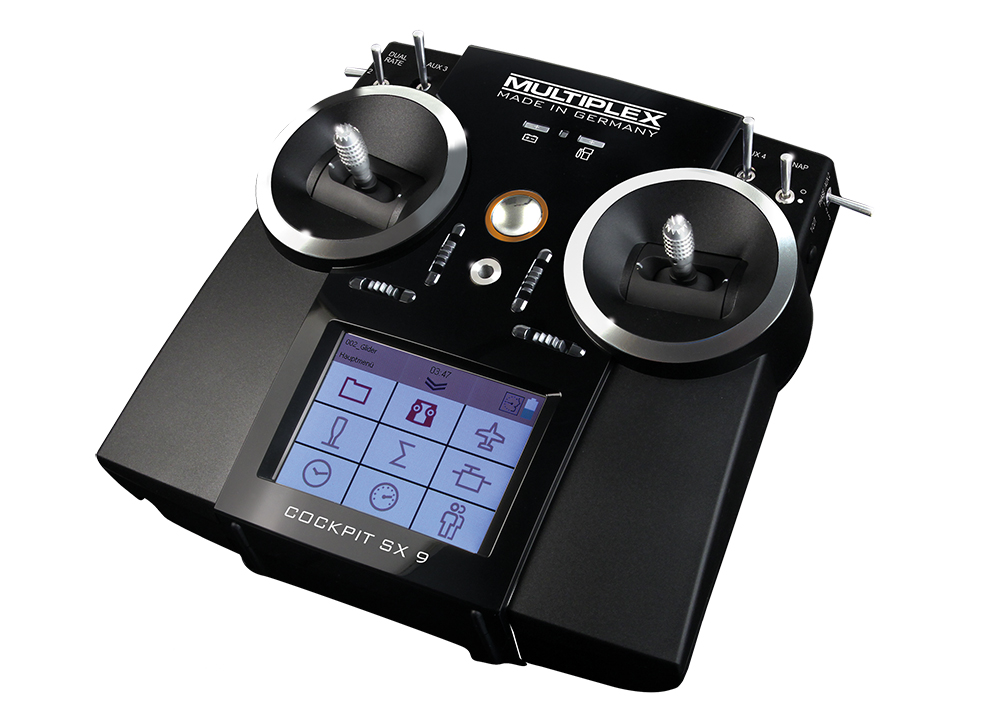

Multiplex COCKPIT SX 9 M-LINK Transmitter only

The COCKPIT SX 9 can be programmed very easily using its app symbols. The new SAFE-LINK software in conjunction with numerous other new software features further enhances the transmitter. The model assistant guides you intuitively through a sophisticated touch concept with clear screens and many self-explanatory graphics. Easy-to-read TFT color touch display (even in sunlight) 3.5″, 320×240 pixels in size, with automatic day/night switching. Transmitter operating time up to 24 hours possible.

Unique in this class is the intuitive control of functions via motion sensors (position or…

rotation rate sensors). For example, for camera movements, triggering voice output, etc.

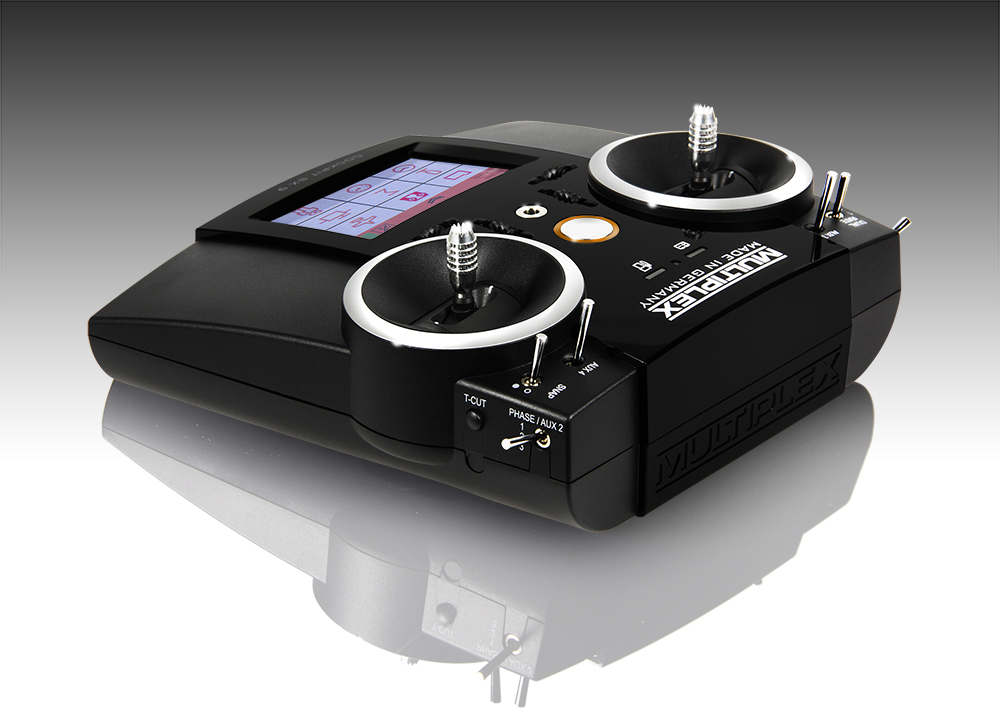

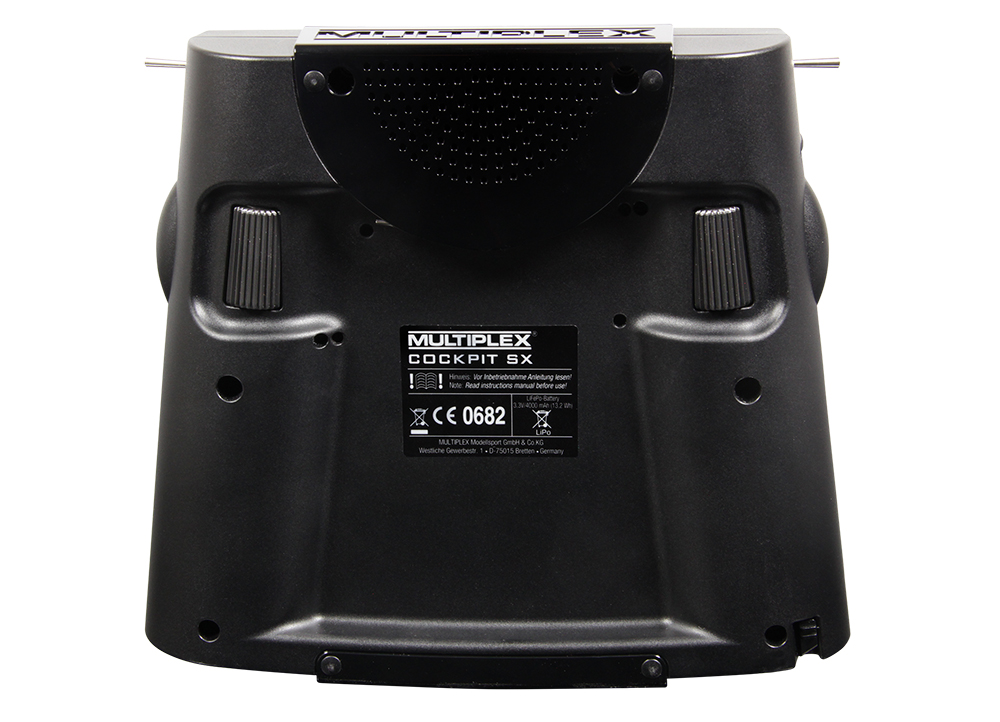

The COCKPIT SX 9 has an excellent ergonomic design. The transmitter has a very comfortable housing size and is super light in the hand. All switches/controllers can be easily reached during operation without taking your thumb off the stick. The encoder assignment can be selected individually.

The ideal remote control for RC fixed-wing models, RC helicopters and RC copters. Can also be used for RC cars, ship models and much more.

The COCKPIT SX 9 is 100% developed and built in Germany. Quality Made in Germany!

TFT color touch display, clear, transflective color display 3.5″, 320×240 pixels, touchscreen with meaningful symbols and large, easy-to-read numbers/letters. Can be read in sunlight without backlighting: ideal for model sports. Extremely energy-saving when used outdoors thanks to automatic day/night switching. Transmitter operating time up to 24 hours possible.

Simple and extensive programming options via the new model assistant

Intuitive operation thanks to a sophisticated touch concept with clear screens and many self-explanatory graphics. A convenient model assistant with a variety of options for adjusting values via the touchscreen. Simple adjustment via slider, direct value entry with alphanumeric keyboard, +/- and buttons for fine adjustment ensure the easiest programming of your models.

Super convenient model memory management

The COCKPIT SX 9 is equipped with 200 internal model storage spaces, the model memories are stored on the internal SD card in .xml format. Convenient model memory management on the PC via USB mass storage is therefore easily possible.

Outstanding voice acting

With over 450 words, numbers and phrases, it is one of the most advanced systems of its kind ever built into a handheld transmitter.

Using this system allows COCKPIT SX 9 pilots to view critical telemetry data and transmitter functions without taking their eyes off the flight. The COCKPIT SX 9 tells you the specific sensor values if necessary. If an alarm is triggered, you don’t have to look at the display to see what’s going on, the COCKPIT SX 9 tells you.

Return channel/telemetry

When using a telemetry-capable receiver, the current voltage of the receiver power supply is shown on the transmitter display. If the voltage falls below an adjustable minimum, an acoustic signal warns that the receiver battery is becoming empty. Without a sensor, the connection quality (LQI) can also be displayed in % values on the transmitter display.

An additional safety plus!

You can also display up to 8 telemetry data from the model (depending on the sensors connected to the receiver, e.g. voltage, current, temperature, etc.) on the display (application examples: motor temperature, drive battery voltage, current consumption of the drive). The telemetry data is stored in the model in conjunction with the optional MULTIPLEX FlightRecorder (# 8 5420). Display of the sensor values in the display is freely configurable, dynamic adjustment of the displays.

Wireless teacher/student operation

The COCKPIT SX 9 M-LINK can be used as both a teacher and a student transmitter as standard. All L/S-compatible M-LINK transmitters can be used as student or teacher transmitters. The optional COPILOT module (# 4 5184) is required for teacher operation. The COCKPIT SX 9 works with selective L/S operation. This allows complete handover or, depending on the student’s learning progress, the handover of individual control functions to the student. The teacher can only take over the model again by touching the sticks.

Dual rate and expo can be set separately for each phase

For 3 axes (across, elevation, side) plus Expo for throttle.

4 timers:

• Timer 1: mm:ss start/stop switch selectable, alarm function, voice output, vibration

• Timer 2: mm:ss start switch selectable, alarm function, voice output, vibration

• Timer 3: hh:mm transmitter operating time counter

• Timer 4: hh:mm time

You can find helpful videos on the topic of menu navigation and programming at: MULTIPLEX FAQ videos

Equipment: COCKPIT SX9:

• LiFe battery 3.3V/4000mAh

• SD card

• 4 proportional controls (stick functions)

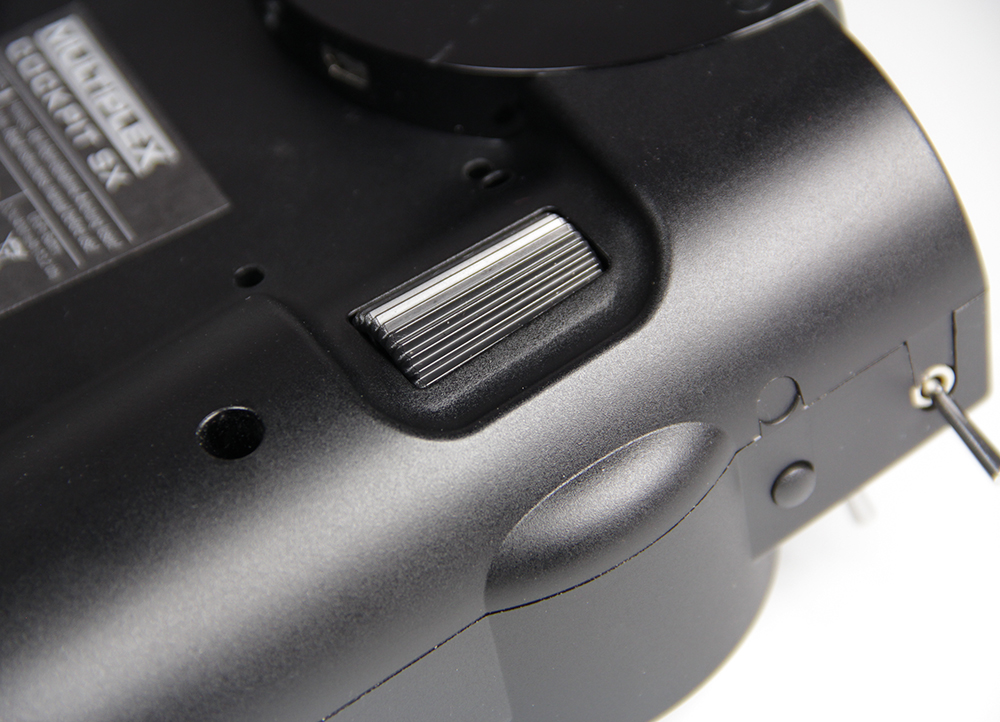

• 2 proportional encoders (rollers)

• 6 switches (3X input / output / input) (3x input / output)

• 2 buttons

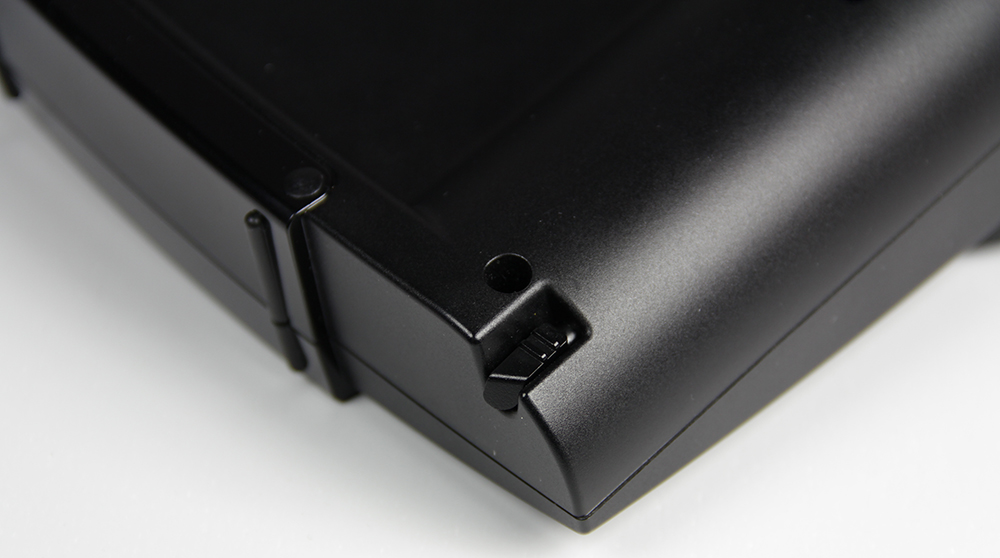

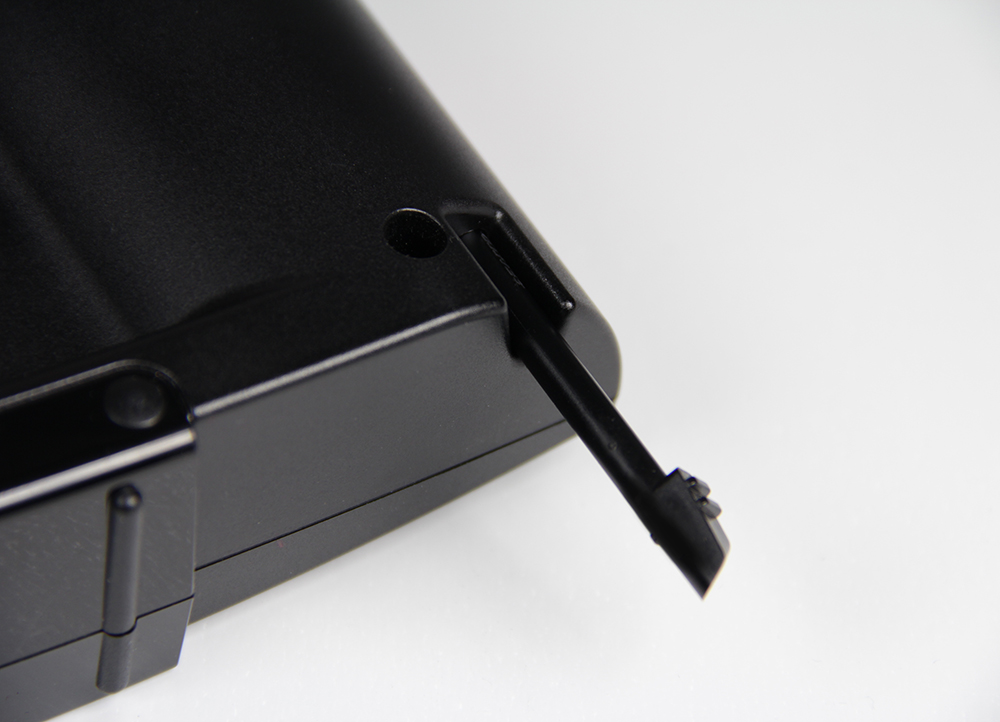

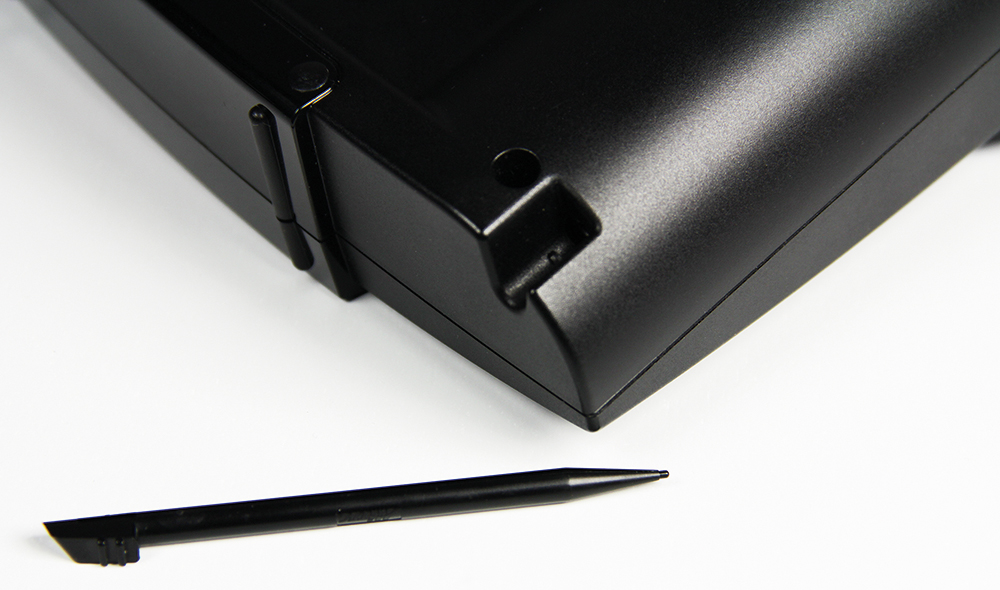

• Display slider (encoders that are operated with the input pen on the display)

• LiFe battery 3.3V (4000mAh

• SD card

Technical features:

• Future-oriented 9-channel remote control – 9 fully proportional control channels

• 32 bit processor / 4096 steps

• 2.4 GHz M-LINK transmission secure, ultra-fast, digital signal transmission with real-time telemetry

• Analog and digital servo modes

• IOAT antenna – integrated radiation-optimized antenna technology with extremely long range

• 3.5″ large new TFT color touch display with telemetry display and DAY/NIGHT switch, daylight REAL

• 4 ball bearing-mounted stick units (mechanics of the PROFI TX)

• Completely equipped with all necessary controls and switches

• Voice output (D,E,F) via loudspeaker or earphone jack

• USB socket (charge transmitter battery, PC interface for firmware updates, data management

• Modern, ergonomically optimized housing design

• Low weight

• 2.4 GHz M-LINK transmission technology integrated

• µSD card for model storage

• Long operating time up to 24 hours

Software features:

• “Smartphone-like” operation thanks to a clear and concise menu structure

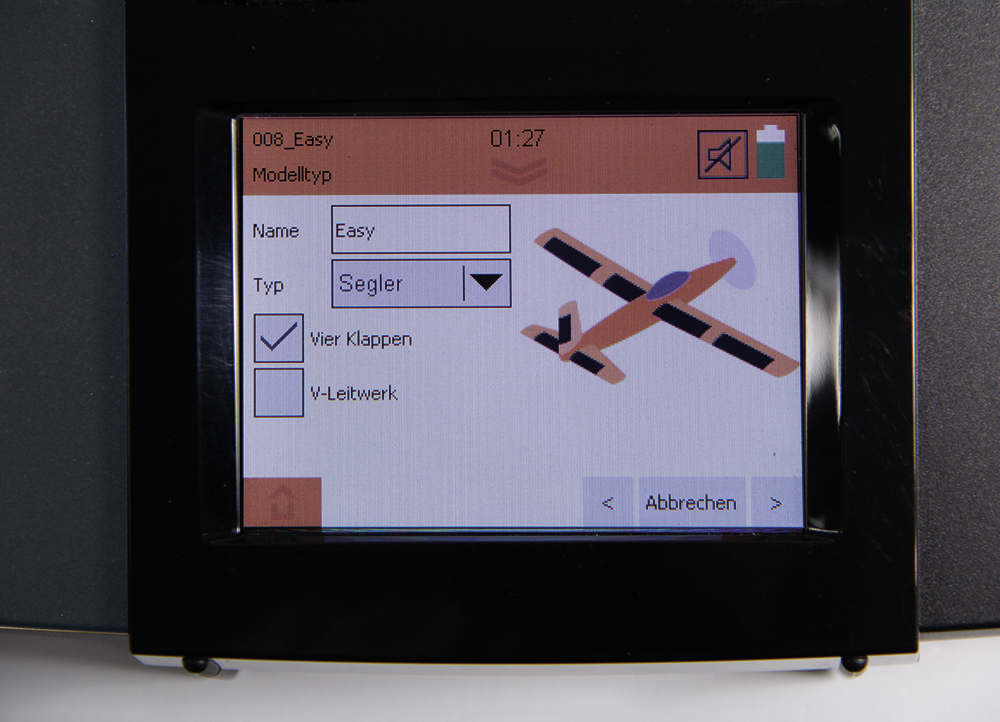

• Model assistant guides you through programming

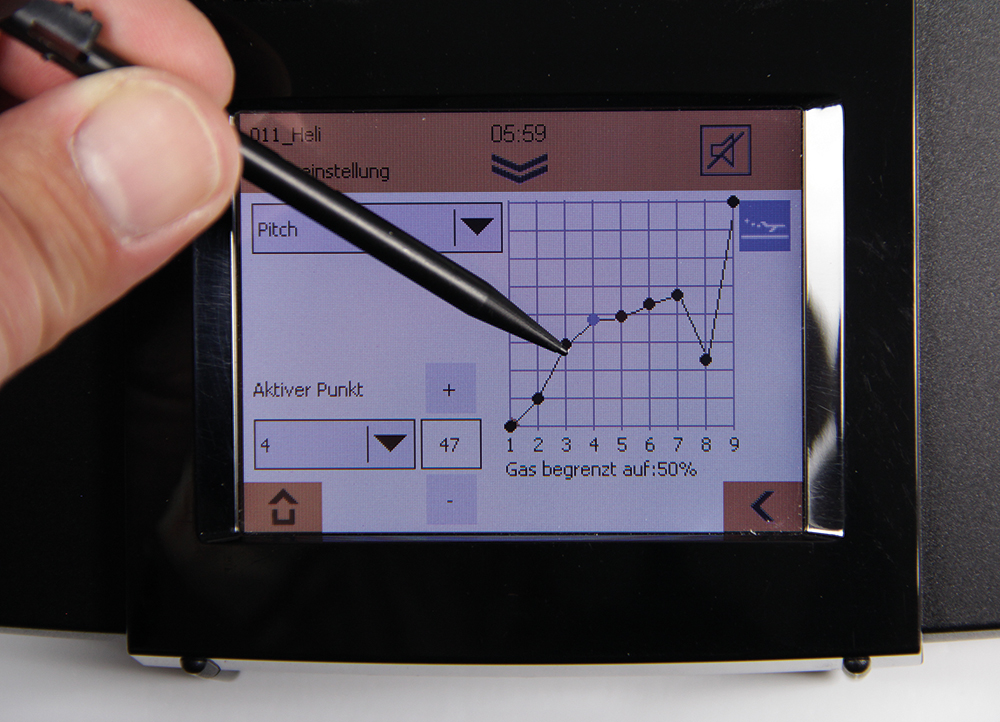

• Slide function – e.g. PITCH CURVES can be adjusted by touching and dragging

• Predefined templates for almost all common surfaces and helicopter models

Areas of application include:

SAILOR 2 FLAPS

SAILOR 4 flaps + spoilers

V-TAIL

MOTOR PLANE

AIRCRAFT PLANES

Jets (DELTA)

FLYING WING

HELI 120 degrees

HELI 90 degree flybarless

MULTICOPTER

• New SAFE-LINK function:

Range optimization

Plus security

Model memory selection protection through SAFE-LINK

Functional model building: up to three models can be switched on the transmitter during operation

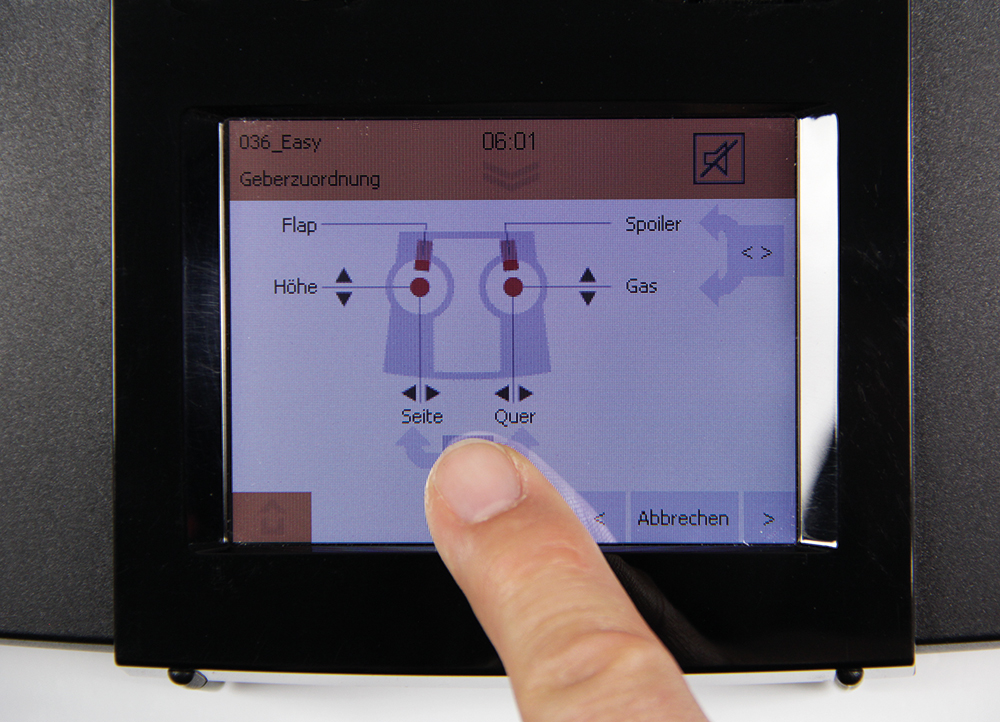

• New encoder assignment can be individually selected

• New roller and slider indicators in the display with acoustic support

• New screen lock

• Safety: gas check, transmitter battery monitor

• Intelligent voice output D / E / F

• Announcement of telemetry data, warnings, alarms and vario signals via loudspeakers or headphones

• Real-time data transmission

• Optional sensors (Vario, GPS, capacity, temperature, voltage, current, speed and much more)

• Vibration alarm, as well as “warning” LEDs for critical alarms

• Digital trim, can be switched off depending on the flight phase for helicopter flybar systems and MULTICOPTER

• 3 timers with voice output

Freely adjustable encoder mode (across, elevation, side, throttle, spoiler)

(1x total timer, 1x motor running time, 1x transmitter operating time)

• Numerous servo settings (travel, limitation, reversal, middle position)

• Dual Rate and Expo, separately adjustable for each flight phase

• 3 flight phases (area)

• 4 flight phases (heli)

• Heli GAS and pitch curves (9 points) can be set separately for each flight phase

• Aileron differentiation, adjustable separately for each flight phase

• Snap flap

• Butterfly function

• FREE SERVO ASSIGNMENT

• Wireless teacher/student operation possible with optional COPILOT

• Multifunctional USB socket (charge transmitter battery, PC interface for firmware updates, data management)

• µSD card for model storage – 200 model memories

• Model copy function
