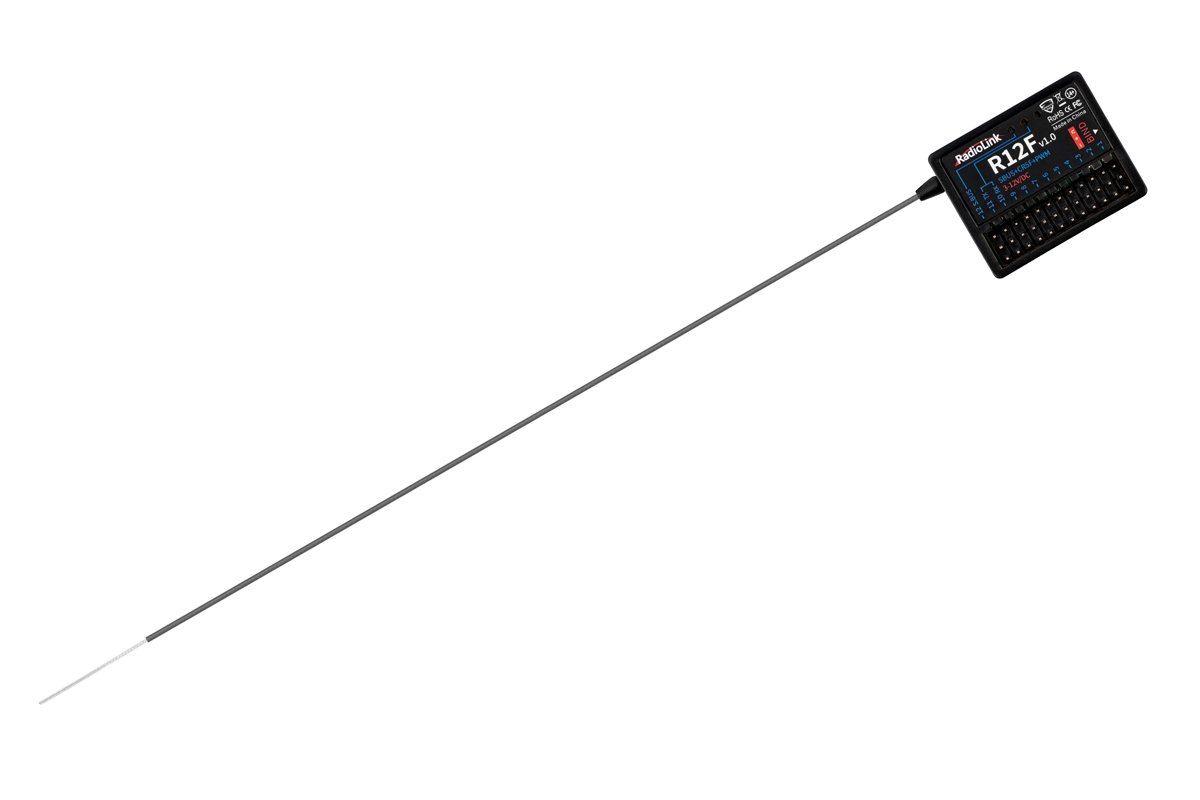

RadioLink R12F modtager

The Radiolink R12F 2.4GHz is a 12-channel FHSS with frequency hopping receiver without telemetry, compatible with the Radiolink T12D and T16D transmitters. It offers four operating modes:

• with standard pulse width modulated (PWM) signal servo outputs (12 PWM channels on outputs CH1–12)
• with S.BUS serial output and PWM channels (11 PWM channels on outputs CH1–11 + S.BUS on CH12)

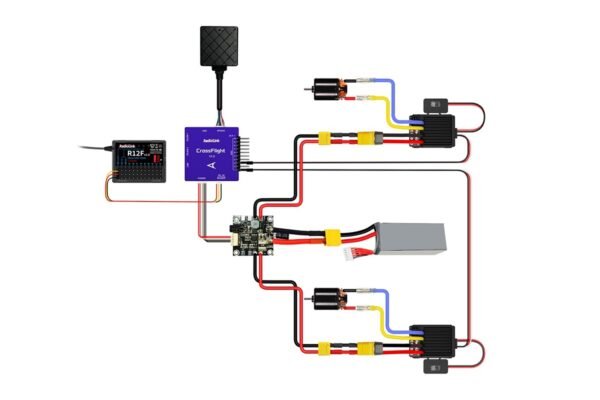

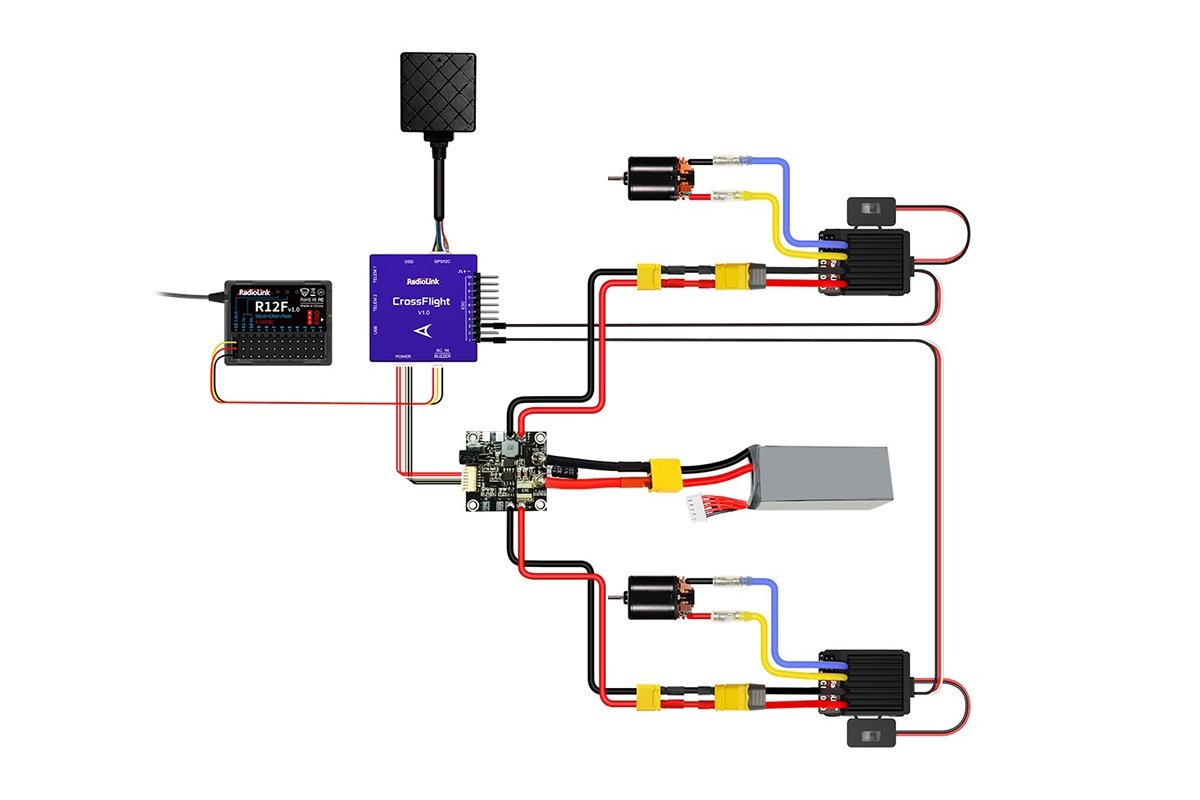

• with S.BUS serial output, CRSF input and output and PWM channels (9 PWM channels on outputs CH1–9 +CRSF (RX) on CH10/CRSF (TX) on CH11 + S.BUS on CH12)
• with CRSF input and output and PWM channels (10 PWM channels on outputs CH1–9 and CH12 +CRSF (RX) on CH10/CRSF (TX) on CH11)

The receiver is suitable for models of all categories – the manufacturer’s claimed range is up to 4000 m in the air (under ideal conditions, without interference).The use of FHSS transmission technology provides high immunity to interference and the possibility of setting fail-safe deviations in case of failure or severe interference to the transmitter signal

Pairing with the transmitter is done using the pairing button on the receiver, operating states are indicated by an LED.

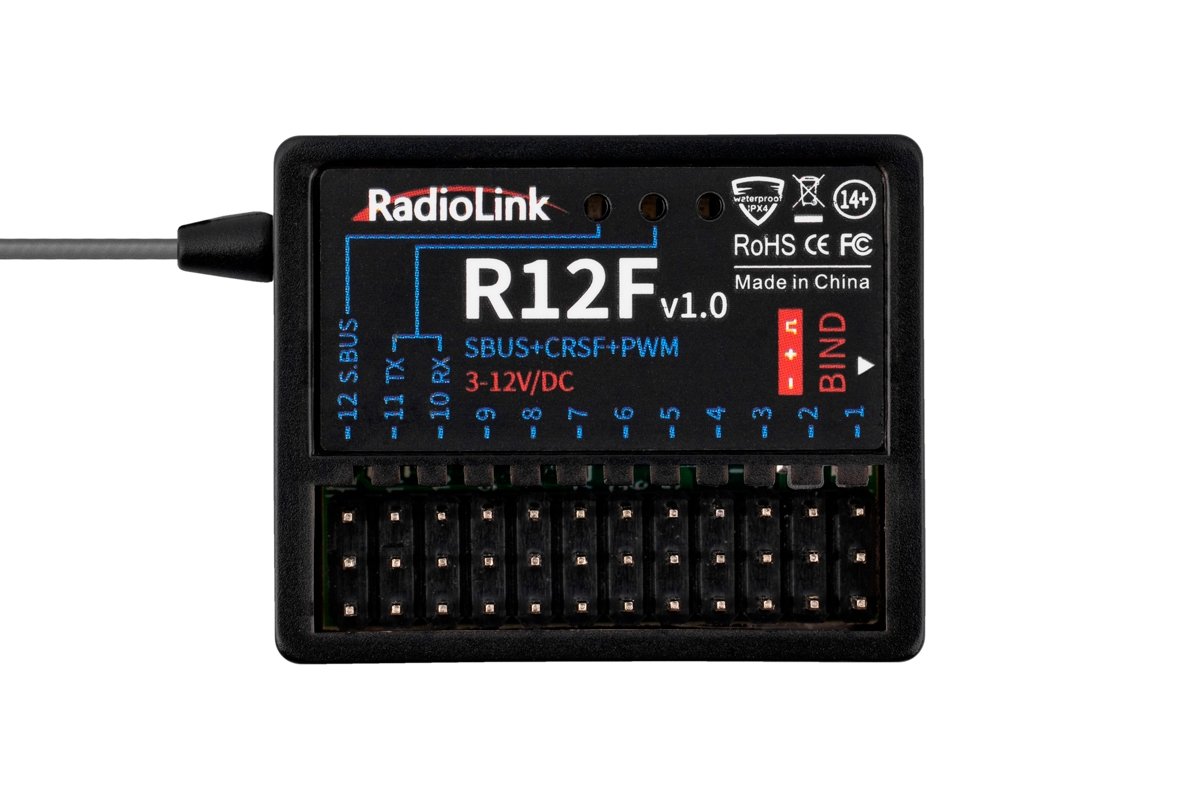

The receiver is equipped with contact rails for standard UNI connectors (=JR/Graupner, Hitec, Futaba); the pins are oriented in the direction of the longitudinal axis of the receiver.

The operating range of 3–12 V supply voltages allows operation with power supply from 1–2S LiPo/Li-ion, 2S LiFe, 4–8 cell NiMH or BEC 5–12 V regulators.

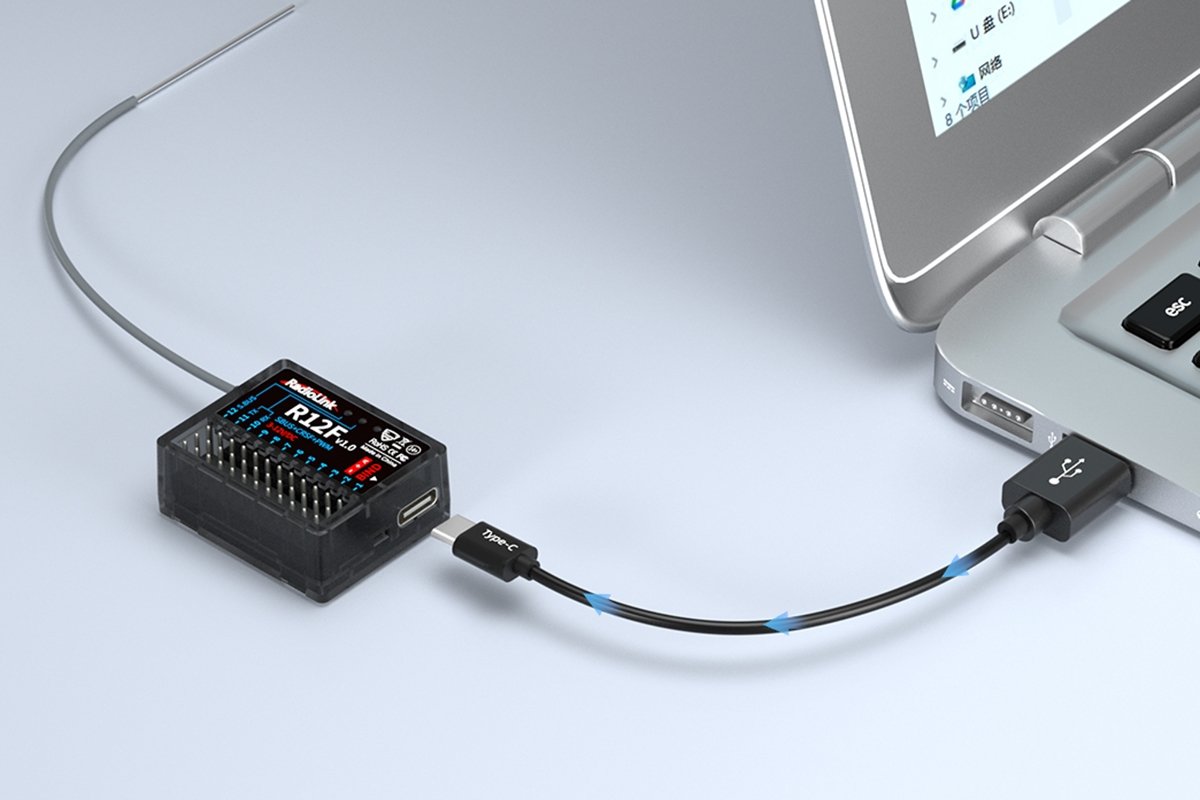

The receiver has upgradable firmware (via USB-C socket).

Receiver kit includes: R12F receiver, manual.
