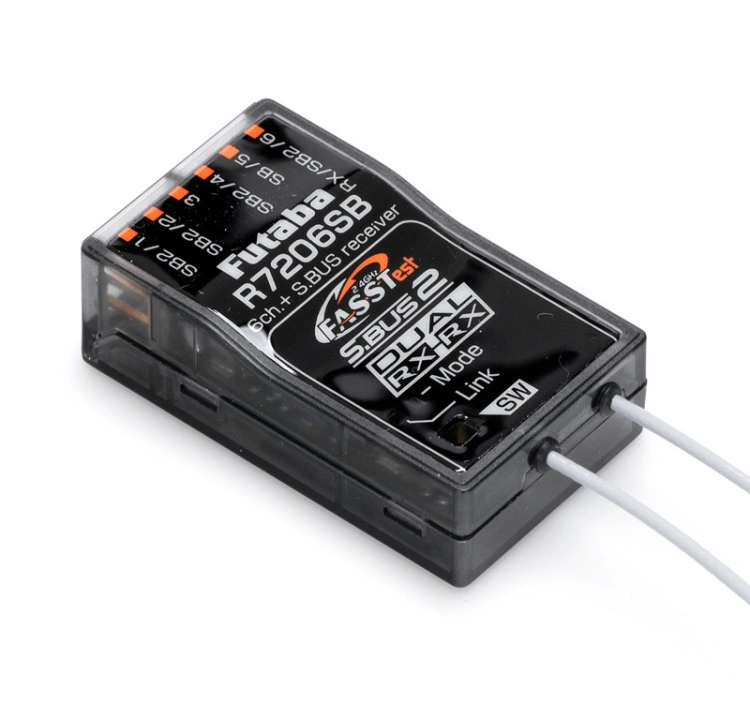

Futaba R7206SB modtager

The R7206SB is a FASSTest-2.4GHz compatible receiver. The R7206SB features bi-directional communication with a Futaba FASSTest transmitter using the S.BUS2 port. Using the S-BUS2 port an impressive array of telemetry ssensors may be used. It also includes booth standard PWM output ports (CH1-6) and S.BUS output ports. The new R7206SB can also be switched to the Dual RX Link system. This system can ensure safety by mounting two FASSTest receivers in one aircraft.

Specs:

• FASSTest 2.4GHz System
• Bi-directional Communication System
• Dual RX Link System
• S.BUS2 & S.BUS port – 6 channels for conventional system receiver
• Dual antenna diversity
• Size:  38.3×22.5×12.2mm
• Weight: 8.8g
• Power requirement: 3.7-7.4V (voltage range 3.5-8.4V)
• Battery F/S voltage: Sets up with the transmitter
