Futaba T26SZ Radio FASSTest26, R7208SB, 2S LiPo

The new T26SZ is positioned in between the highly desirable high-end T32MZ-WC series that is loved by many competitors and the mid-range T16IZ-Super. For pilots who fly anything and everything, demand unquestioned reliability and seek a future-proof radio that offers the highest level of programming sophistication, Futaba’s T26SZ will be impossible to ignore. With its user-friendly interface, twin screens, silky-smooth hall effect non-contact gimbals, near like-for-like T32MZ feature set, elegant styling and latest FASSTest 26ch protocol, the T26SZ is highly likely to tick every box on your extensive wish list. It is a masterpiece that is comparable to the high-end class, and can be said to be the result of Futaba’s many years of accumulated know-how and solid results.

S.BUS2 SYSTEM
Multiple servos, gyros and telemetry sensors can be easily installed with a minimum of cables.

MAIN LCD COLOR DISPLAY
HVGA 4.3″ full color backlit LCD transflective (indoor / outdoor visible) touch screen.

SECONDARY LCD DISPLAY
A high quality reflective LCD for easy recognition of telemetry information.

SD CARD PORT
Update software, store model data and upload picture files using the microSD port.

HIGH CAPACITY LI-PO
2100mAh offers a comfortable operating duration and real peace of mind.

INTUITIVE PROGRAMMING
Model-specific programming and editing has never been easier.

MULTIPROP CHANNEL EXPANSION
Using the MPDX-1 multiprop decoder (sold separately) one channel can be divided into eight channels. Two MPDX-1s can be used.

FEELS GOOD
Magnetic detection non-contact potentiometers offer fine, ultra-precise, long-lasting operation. A throttle stick external adjustment screw allows ratchet or self-neutralizing spring adjustment.

SWITCH REPLACEMENT
Change four of the toggles on the right and left shoulder with your chosen two-position, three-position or momentary switch.

Features:

• The T26SZ transmitter is changable to either Mode-1 or Mode-2 in the software. See the manual for more info.
• FASSTest26, FASSTest18, FASSTest12, S-FHSS & T-FHSS protocols
• 26 channels (24+2)
• Full color 4.3 inch touch screen
• 3.0″ LCD sub display
• High quality finish
• Model image display
• Smooth non-contact stick potentiometer
• Shoulder switch upgrade / replacement
• Four rear sliders (paired)
• Vibration alert
• Voice function
• Telemetry system
• Four stick modes (1-4)
• MicroSD card software update
• High capacity LiPo
• USB-C charging
• Earphone jack
• Calendar clock
• S.BUS I/F enabled
• Wireless trainer system
• ±240 step sub trim
• Sub trim balance
• DLPH-2 settings
• Receiver mode-setting port
• Gyro setting for CGY755 / 760R / 770R / GYA553
• 8 flight conditions
• 30 pre-programmed mixers
• 10 free programmable mixers
• Retract and door sequencer
• 13 fixed-wing types
• 3 fixed-wing tail types
• 2 fixed-wing rudder types
• 8 helicopter swash types
• Supports 14 telemetry sensor types
• GPS enabled

Key Programming Features (for full list see manual):

• Model name (15 characters)
• Sub trim
• Sub trim balance
• Servo reverse
• Fail-safe
• Exponential
• Throttle cut
• End point / ATV (30 – 140%)
• Servo speed
• Trainer function
• Servo monitor
• Trim setting (step, rate, mode)
• Data editor (for S.Bus equipment)
• 10 programmable mixers
• 30 pre-programmed mixers
• Aileron differential
• Air brake
• Flap trim
• Flap setting
• Butterfly
• Camber mix
• Camber flap-elevator
• Elevator to camber
• Aileron to camber flap
• Aileron to rudder
• V tail
• Ailvator
• Winglet
• Aileron to brake flap
• Snap roll
• Servo monitor
• Twin timers
• Stick alarm
• Battery fail-safe
• Gyro sense
• Multi engine
• Motor mix
• Condition name
• AFR (dual rate)
• AFR (curve mode)
• AFR curve point number (17 points)
• Logic switch (condition switch only)
• Acceleration mixing
• Pitch curve / pitch trim
• Throttle curve / throttle hover trim
• Pitch to needle mix
• Revolution mix
• Swash ring
• Idle down
• Throttle limiter
• Swash setting
• Swash AFR
• System timer
• Function setting
• Governor

Telemetry functions:

• Temperature
• RPM (magnetic & optic)
• Altitude
• GPS
• Voltage
• Receiver battery
• Current
• Data logging

What’s in the Box:

• T26SZ 26-channel transmitter

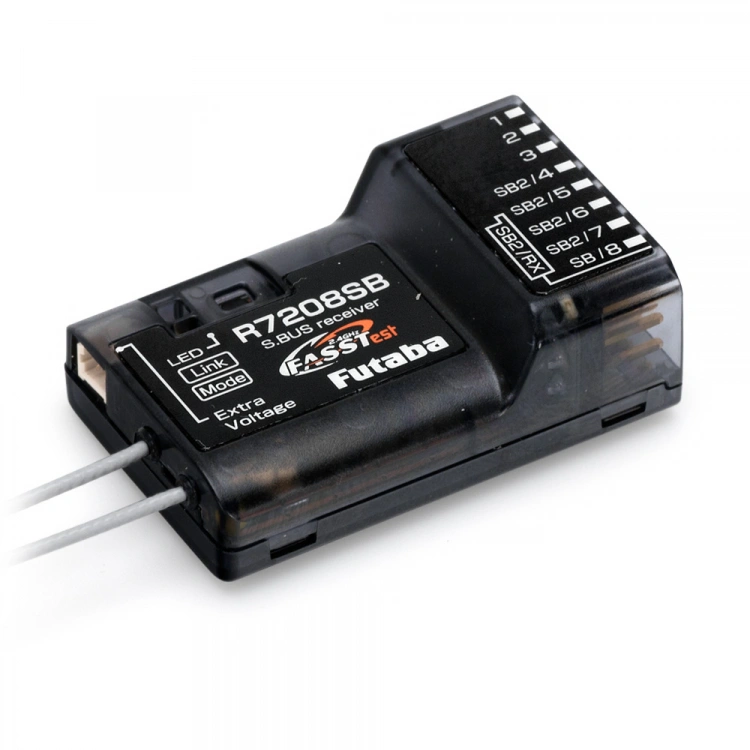

• R7208SB receiver
• 7.4V 2000mAh Li-Po Tx battery pack
• USB-C charge lead
• Neck strap
• Tool set
• Short manual (full pdf manual as download)
